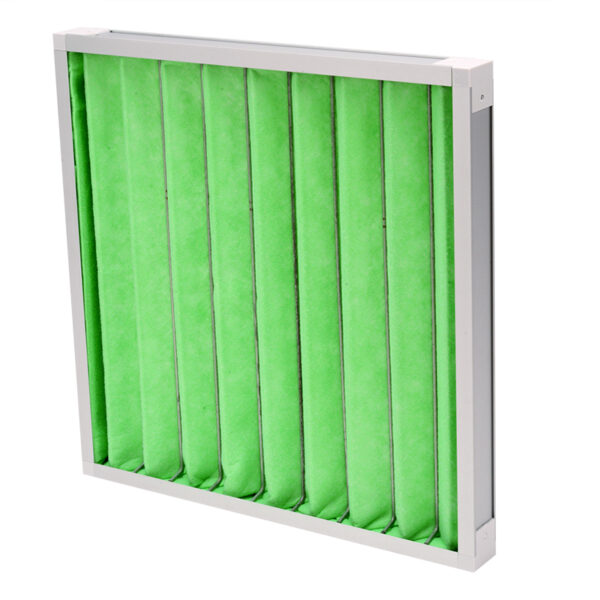

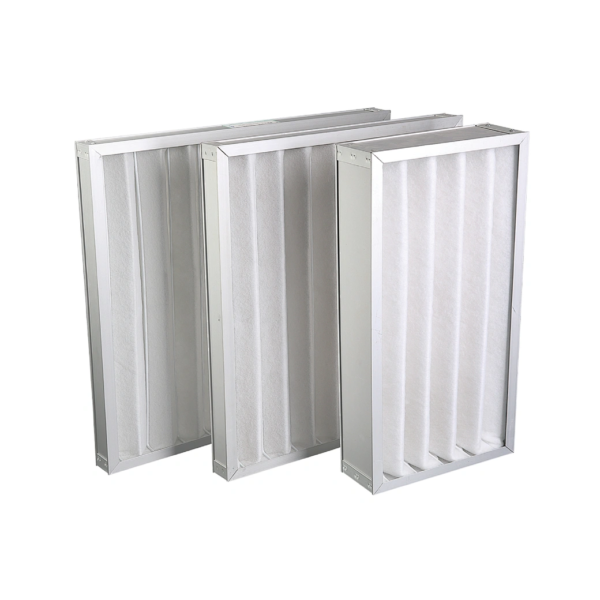

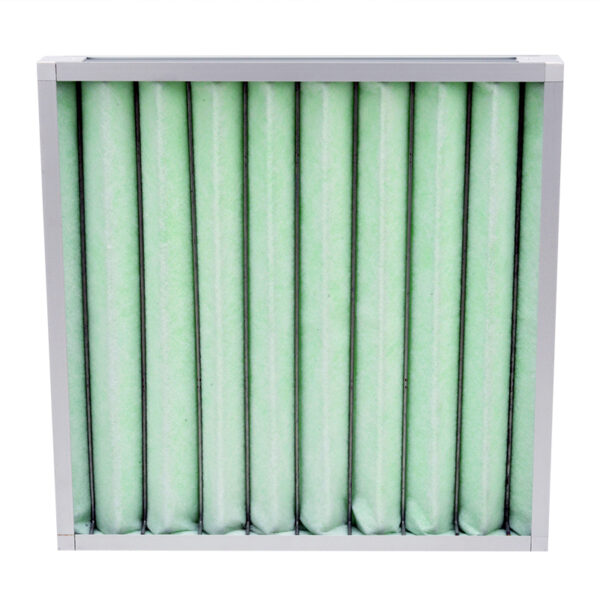

Product Description
Product features:
· strong and durable structure, the removable structure can be selected to facilitate the replacement of filter material, which can achieve the effect of reuse and greatly improve the utilization rate;
· low initial resistance, high dust capacity, washable, economical and practical;
· the filter material is made of high-quality polyester synthetic fiber, which can be cleaned and reused many times with long service life.
Product specification:
| Model | Length(m) | Width(m) | Thickness(mm) | Initial resistance(Pa) | Rated Air Flow(m3/h) |
| LG46 | 595 | 595 | 46 | 45 | 3400 |
| LG96 | 595 | 595 | 96 | 45 | 3400 |
Note: other specifications can be customized according to requirements.
Technical datasheet:
| Filtering class | G3、G4(EN779)、EU3、EU4(EUROVENT) |
| Efficiency | 85%、95%(ASHRAE52.1-1992) |
| Filter object | ≥ 5 μ m coarse dust and foreign matter |
| Moisture resistance (relative humidity) | ≤99%RH |
